What Are the Key Features to Look for in a 60-Minute Fire Door?

A 60-minute fire door (FD 60) is a specialized life-safety barrier engineered to resist fire and smoke for one hour. Key features include IS 3614:2021 compliance, 1.2mm Galvanized Iron (GI) steel leaves, high-density Rockwool insulation, and heat-activated intumescent seals. These components ensure structural integrity and safe evacuation during emergencies.

Understanding the Importance of Fire Rated Doors

In the realm of industrial and commercial infrastructure, fire rated doors serve as the first line of defense against thermal hazards. A 60-minute fire door, specifically, is designed to provide a critical sixty-minute window for occupants to evacuate and for emergency services to contain the blaze. Whether you are looking for fire door manufacturers for a hospital in Gurgaon or a factory in Greater Noida, understanding technical specifications is non-negotiable for compliance and safety.

1. Compliance with IS 3614 and NBC 2016 Standards

The most critical feature of any fire safety door is its certification. In India, all doors must adhere to the following:

• IS 3614:2021: This is the benchmark for fire resistance tests for door assemblies.
• NBC 2016: The National Building Code (NBC) provides mandates for escape routes and hazardous zone isolation.
• CBRI Roorkee Testing: Ensure the manufacturer cites CBRI Roorkee as their testing benchmark to guarantee the door has survived rigorous thermal stress tests.

2. High-Grade Construction Materials

A steel fire door is only as strong as its core and casing. When evaluating fire resistant doors, look for these material benchmarks:

• Door Leaf Material: A minimum of 1.2mm Galvanized Iron (GI) sheet is required for durability and corrosion resistance.

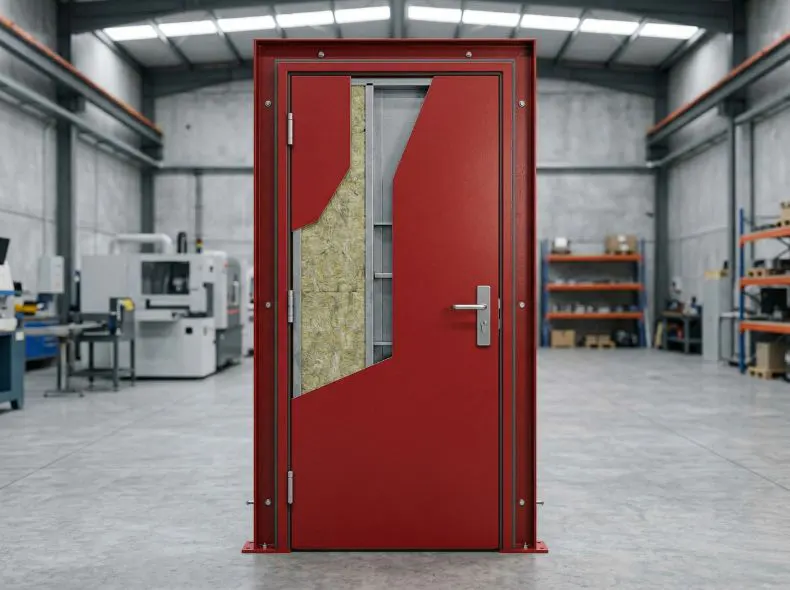

• Infill Material: The core should consist of Rockwool, ceramic wool, or honeycomb structures to provide the necessary thermal insulation.
• Finish: A high-durability powder coating of 60+ microns ensures longevity in varied Indian climatic conditions.

Technical Specifications Table: 60-Minute Fire Doors

3. Specialized Hardware and Vision Panels

The functionality of industrial fire doors depends heavily on the hardware integrated into the system.

• Vision Panels: For lobbies and corporate offices, vision panel fire doors allow for visibility during a fire without compromising safety. Ensure the glass used is fire-rated and matches the door’s 60-minute rating.
• Intumescent Seals: These seals must be at least 10x4mm. Under heat, they expand to seal the gaps between the door and the frame, preventing the passage of toxic smoke.

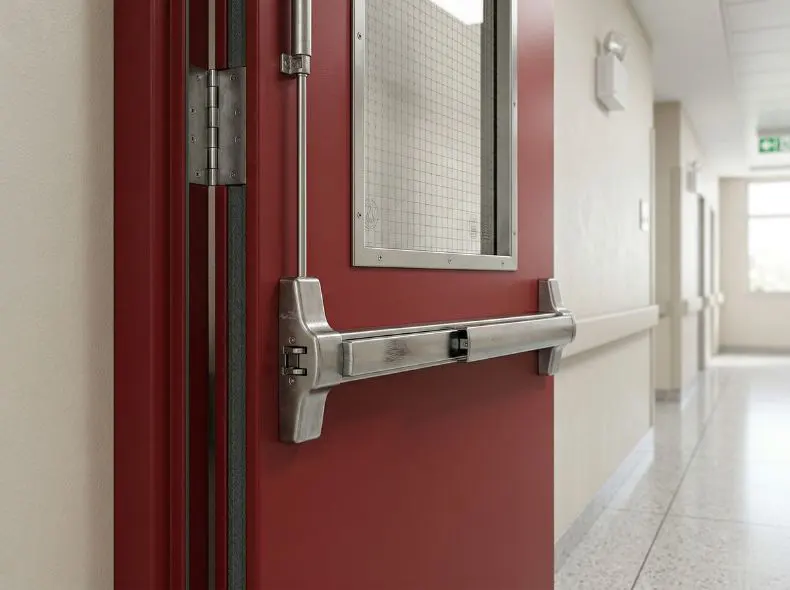

• Panic Hardware: For emergency exit doors, fire-rated panic bars and clear signage are essential for rapid, hands-free evacuation.
• Partner Brands: High-quality hardware from brands like Dorset, Geze, or Allegion ensures mechanical reliability.

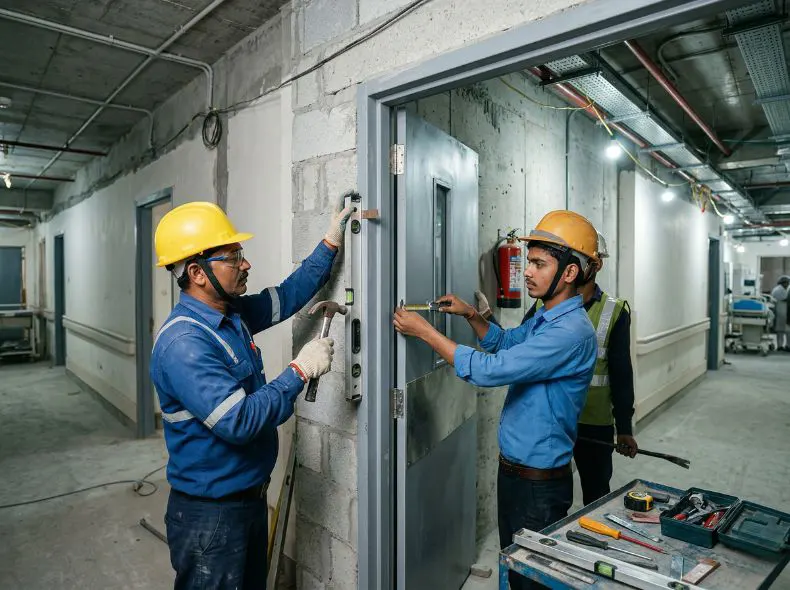

4. Professional Installation and Maintenance

Even the best fire rated door will fail if not installed correctly.

• The 3mm Rule: Factory-trained teams must ensure a precise fitment, maintaining specific 3mm gaps required for fire integrity.
• Annual Maintenance (AMC): Regular inspections of hardware, seals, and alignment are vital to ensure the door remains operational over years of use.

3. Specialized Hardware and Vision Panels

The functionality of industrial fire doors depends heavily on the hardware integrated into the system.

• Vision Panels: For lobbies and corporate offices, vision panel fire doors allow for visibility during a fire without compromising safety. Ensure the glass used is fire-rated and matches the door’s 60-minute rating.
• Intumescent Seals: These seals must be at least 10x4mm. Under heat, they expand to seal the gaps between the door and the frame, preventing the passage of toxic smoke.
• Panic Hardware: For emergency exit doors, fire-rated panic bars and clear signage are essential for rapid, hands-free evacuation.
• Partner Brands: High-quality hardware from brands like Dorset, Geze, or Allegion ensures mechanical reliability.

4. Professional Installation and Maintenance

Even the best fire rated door will fail if not installed correctly.

• The 3mm Rule: Factory-trained teams must ensure a precise fitment, maintaining specific 3mm gaps required for fire integrity.
• Annual Maintenance (AMC): Regular inspections of hardware, seals, and alignment are vital to ensure the door remains operational over years of use.

Comparison: Which is better for a hospital: a 60-minute or 120-minute fire door?

Direct Answer: While a 60-minute fire door is often sufficient for standard corridors and patient rooms, the National Building Code (NBC) often mandates 120-minute (FD 120) doors for high-risk areas like server rooms, lift lobbies, and basement exits. Hospitals in Gurgaon and Delhi NCR typically use a mix of both depending on the zone’s fire load.
